Copeland 4HP Scroll Condensing Unit 380V for Cold Storage Freezer
Contattimi gratis campioni e buoni.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Voltaggio | 380 V. | Capacità di raffreddamento | -20 a +10 |
|---|---|---|---|
| Refrigerante | R404A, R507, R-22, R404A/R134A/R507A/R22 | Intervallo di temperatura | -20 a +10 |
| Peso | 110 kg | Tipo di compressore | Pergamena |
| Potenza del cavallo | 4 CV | Frequenza | 50Hz/60Hz |
| Conta dei ventilatori del condensatore | 1 × φ450 | Voltaggio del ventilatore | 220 V. |
| Potenza dei fan | 60W | Diametro di ingresso | Φ16 mm |
| Diametro di uscita | Φ10 mm | Lunghezza | 1020 mm |
| Larghezza | 420 mm | Altezza | 840 millimetri |
| Dimensioni dell'installazione | 580 × 380 mm | ||
| Evidenziare | Copeland 4HP condensing unit 380V,cold storage freezer condensing unit,refrigeration condensing unit with warranty |
||
Descrizione di prodotto

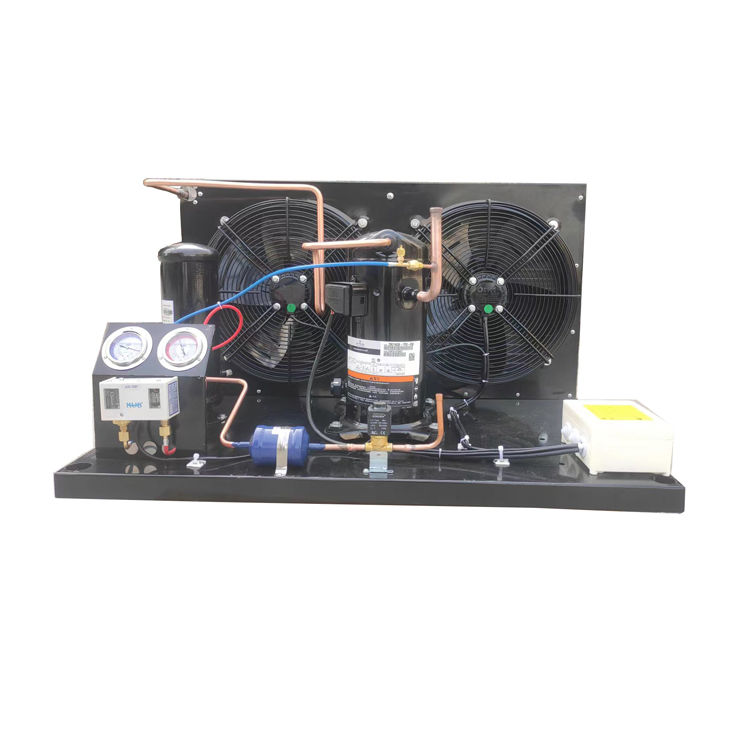

Copeland 4HP Scroll Condensing Unit ZB29 Low-Noise Refrigeration Unit with Core Compressor Component
| Model | KUB 400MAGY |
| Compressor | 4HP |
| Voltage | 380V/3P/50HZ |
| Condenser | Number of fan: 1×Φ450 |
| Voltage of fan(V): 220 | |
| Power of fan(W): 60 | |
| Connection | Inlet (mm): Φ16 |
| Outlet(mm): Φ10 | |
| Dimension | L(mm): 1020 |
| W(mm): 420 | |
| H(mm): 840 | |
| Installation dimension(A×B)(mm) | 580×380 |
Company Information
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
This compressor we are agent, but we are factories that produce condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
By express/By air/By sea.
Q3: What about the payment methods & payment terms?
We accept T/T, Paypal, Western Union, Cash and etc. After 30% deposit, and 70% balance before the shipment.
Q4: What's your delivery time? Where is the loading port?
Usually within 35-60 days after receiving the payment. Loading port: Shanghai, other place in china according your requirement.
Q5: Can I have a sample first?
You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery. The delivery time is according to the way of shipping.
Packaging & Shipping
A. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end. We provide excellent service to solve your worries.
