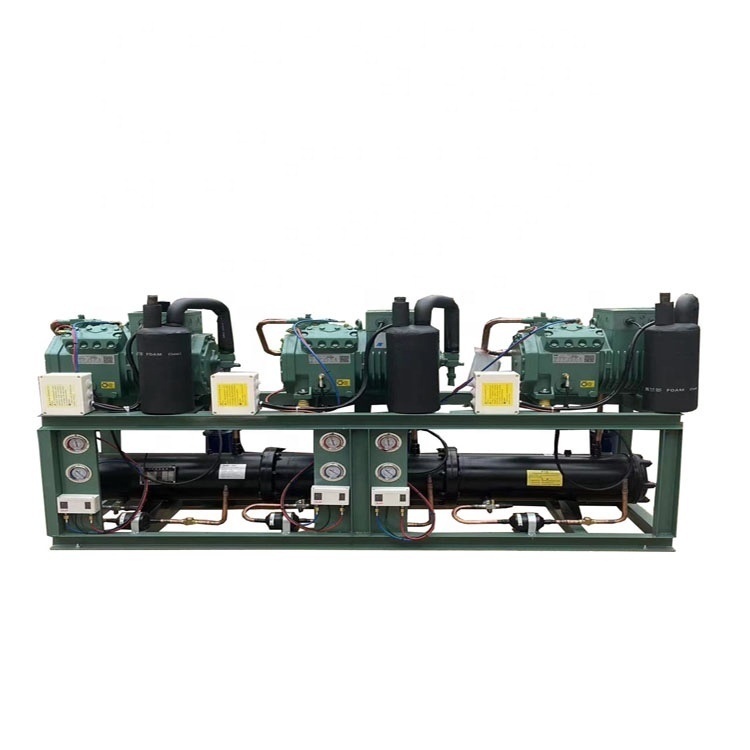

10HP Three System Water Cooled Condensing Unit with 380V/3Ph/50Hz and 1 Year Warranty
Contattimi gratis campioni e buoni.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Peso | 800 kg | Refrigerante | R404A |
|---|---|---|---|
| Tipo di compressore | Compressore a pistone | Voltaggio | 380 V/3PH/50Hz |
| Potenza del cavallo | 10 CV | Intervallo di temperatura | Da 50°C a -30°C |
| Modello del compressore | 4VES-10Y-40P | Tipo di sistema | Tre sistemi |
| Tipo di raffreddamento | Acqua raffreddato | Marchio del compressore | Germania Marchio |
| Componenti principali | Compressore | Aggiustamento dell'energia | Equipaggiato |
| separazione dell'olio | Equipaggiato | Separazione del gas | Equipaggiato |
| Iniezione di liquidi | Equipaggiato | ||
| Evidenziare | 380V/3Ph/50Hz Water Cooled Condensing Unit,1 Year Warranty Condensing Unit,Three System Water Cooled Condensing Unit |
||
Descrizione di prodotto
4VES-10Y-40P Custom Refrigeration Unit - 10HP Condensing Unit Set (Three System Water Cooled)
Product Specifications
| Name | Condensing Unit |
|---|---|
| Company Quantity | 3 |
| Compressor | 4VES-10Y-40P |
| Origin | Made in China |
Product Description
This three-system water-cooling condensing unit is designed for test libraries with specific temperature requirements ranging from +50°C to -30°C. Key features include:
- German brand compressor (Model: 4VES-10Y)
- Compatible with R404A refrigerant
- Equipped with cylinder head fan
- Includes gas separation, oil separation, liquid injection, and energy adjustment systems

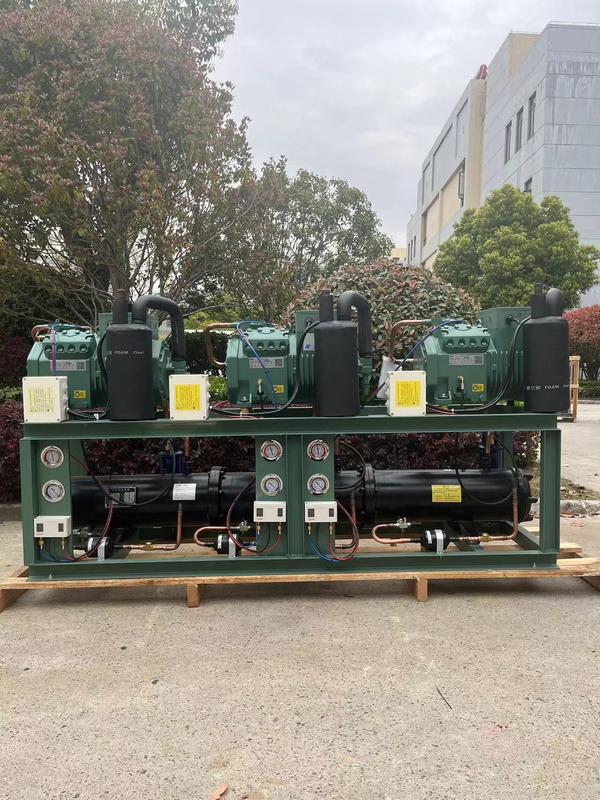

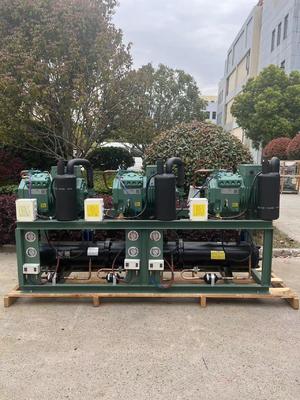

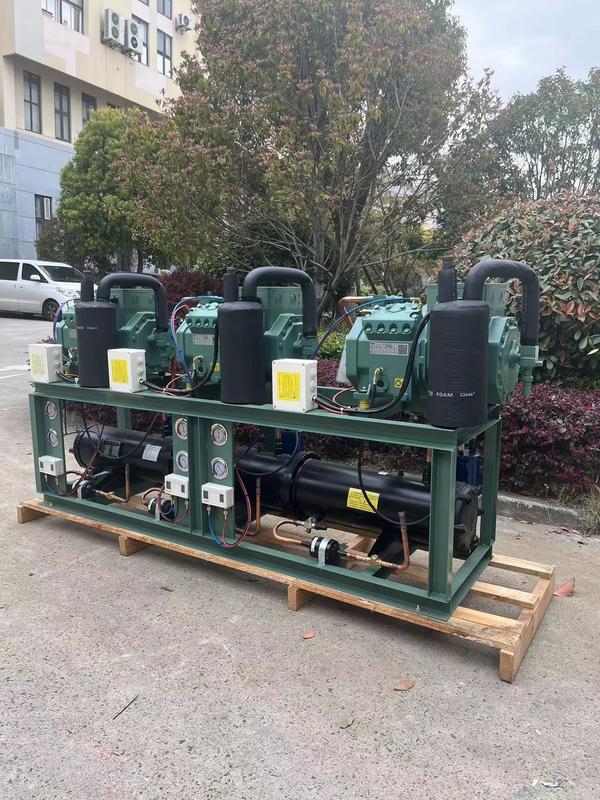

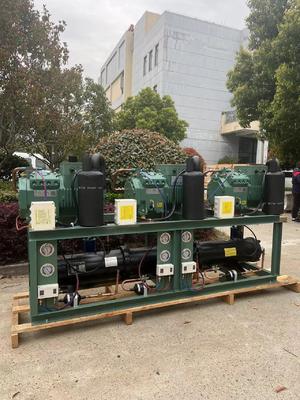

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the agent for this compressor, but we are a factory that produces condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: We ship by express, air, or sea.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, PayPal, Western Union, Cash, etc. Payment terms: 30% deposit, with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typically 35-60 days after receiving payment. Loading port: Shanghai, or other locations in China per your requirements.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We typically ship by LCL or FCL by sea, or by air/express. Delivery times: approximately 30 days by sea, 5-7 days by air/express.
Packaging & Shipping
- Customization: We design solutions for refrigeration, cold storage, agriculture, food service, restaurant, and chemical industries according to customer requirements.
- Warranty: KUB provides a one-year warranty period. We stand behind our product quality and provide excellent service.
